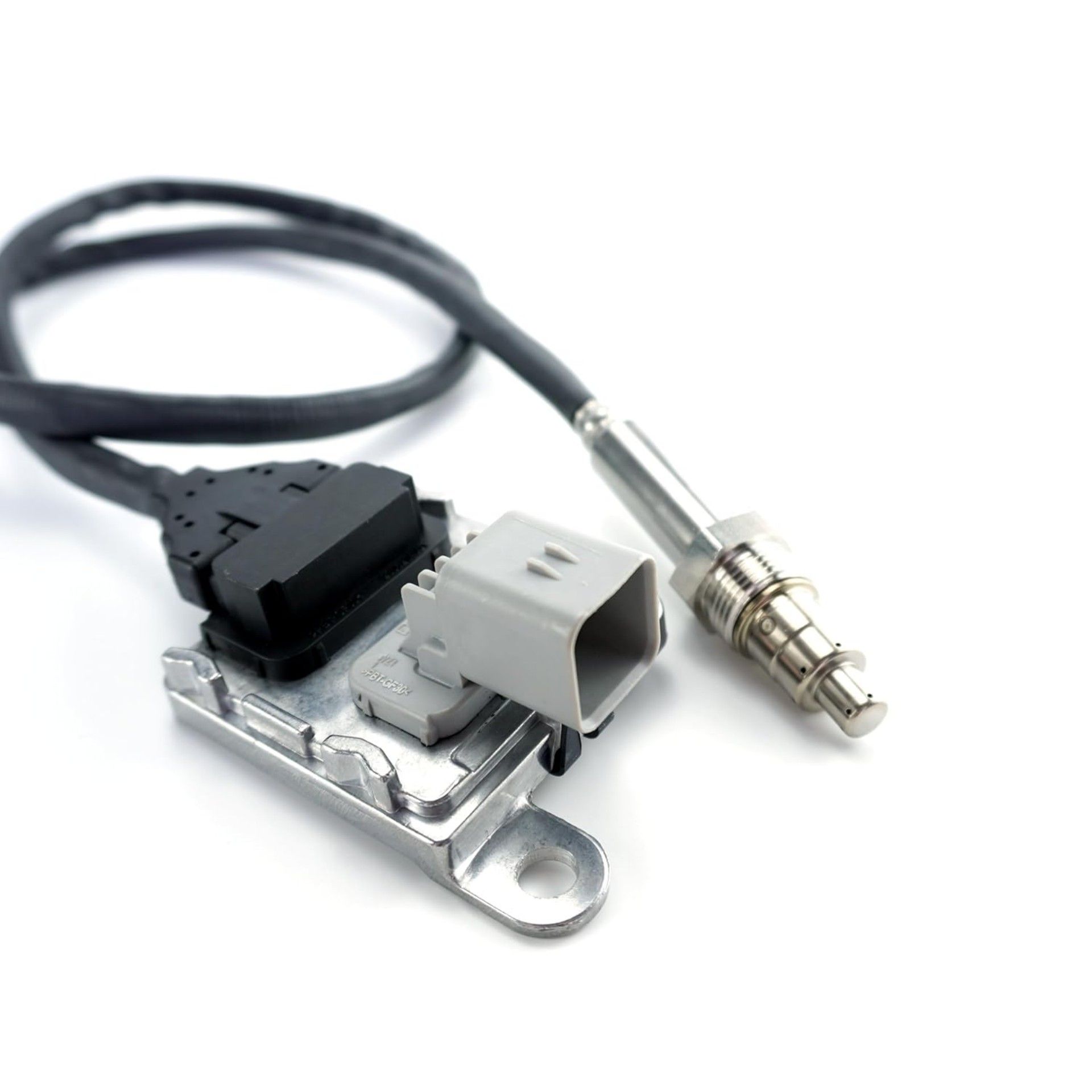

NOx Sensor DZ109689

BG 990672 (OE DZ109689): function on the vehicle

NOx Sensor DZ109689 is supplied by BEST GROWTH under part number 990672, cross-referenced to OE DZ109689, as a direct-fit aftermarket nox sensors. In service it runs a heated zirconia measuring cell inside its own sensor control module, converts the raw cell current into a NOx value in ppm, and publishes it on the bus. The engine controller cannot calculate dosing quantity or conversion efficiency without a plausible signal from it.

BG 990672 is built to the position defined by its OE application on a 24V electrical system in agricultural machinery service on the platform from John Deere. Position, calibration and connector layout are part of the specification, so a part that physically fits is not automatically the correct part.

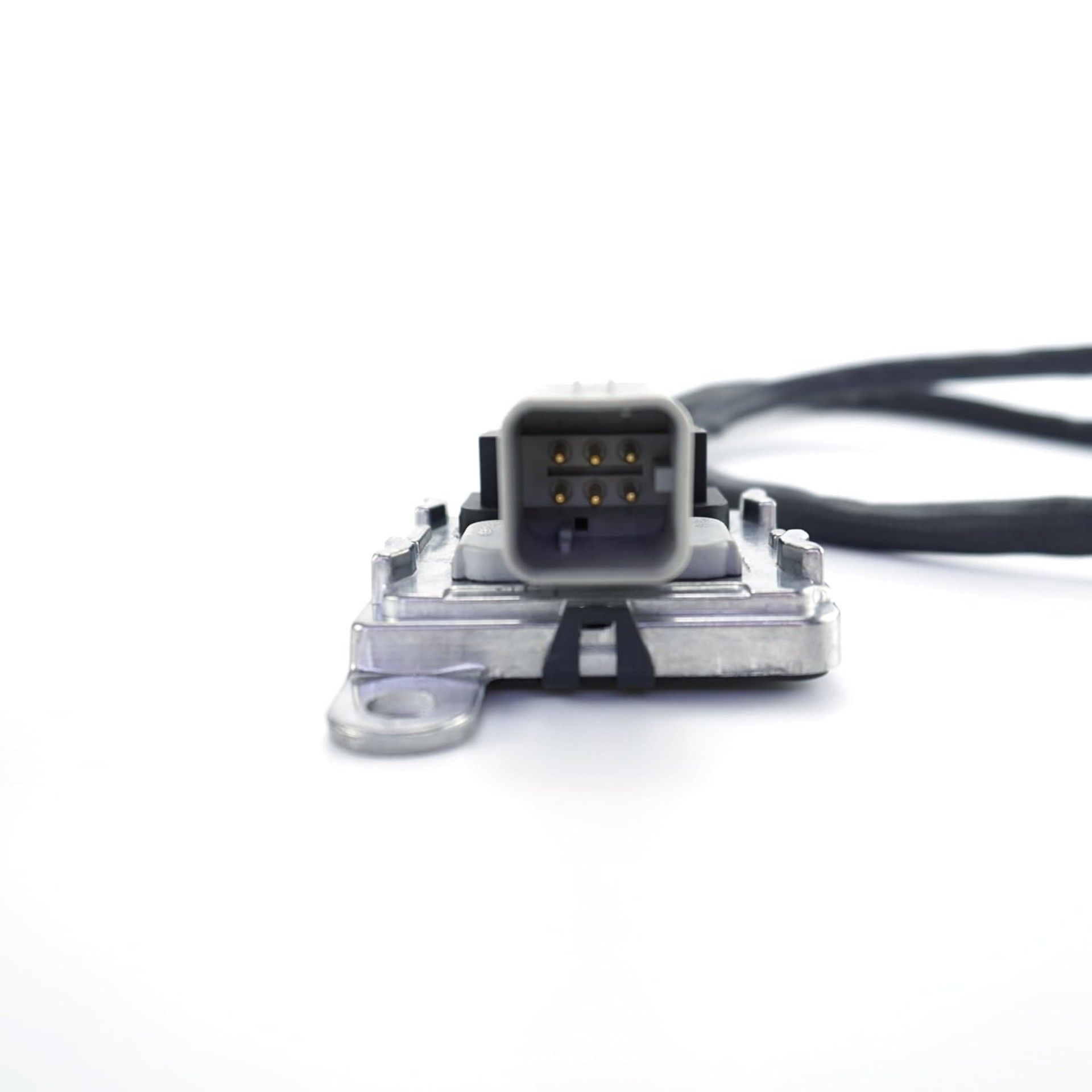

Because the sensor carries its own control module, most "sensor" faults are really bus, supply or ground faults at the connector — the electrical side is worth ten minutes before the part is ordered.

Fitment for John Deere and OE cross reference

BG 990672 replaces 1 OE reference: DZ109689. Always confirm the number printed on the removed part, including any supersession issued by the vehicle manufacturer.

Recorded vehicle coverage for 990672 includes John Deere, typically on Tractor 6M / 6R / 7R / 8R / 8RT / 8RX / 9RX. Coverage lists are a starting point for identification, not a substitute for checking the OE number on the vehicle.

Quote the number printed on your part with the engine code when you enquire; a single-reference part is the most common source of ordering errors when a platform received a mid-life update.

Symptoms that lead to replacing DZ109689

These complaints bring a vehicle in with the John Deere nox sensors under suspicion. None of them prove BG 990672 has failed on its own, which is why the checks below matter before a replacement is ordered.

• upstream and downstream values reading almost identically under load
• intermittent fault that clears after the engine cools and returns when hot
• SCR efficiency below threshold or NOx-signal-implausible fault codes
• DEF over-consumption with no visible leak
• torque derate or speed inducement with a full, in-spec DEF tank

Checks before fitting BG 990672

Aftertreatment faults are usually system faults. Working through these checks prevents a repeat failure after the new nox sensors is fitted.

• Confirm supply voltage, ground quality and bus termination before condemning the sensor module.
• Inspect the harness for heat damage and the connector for moisture and green corrosion.
• Check for exhaust leaks ahead of the sensor boss; a diluted sample reads low NOx.
• Read the sensor's own dew-point release time — a cell that never heats is a supply or module fault.
• Verify DEF concentration with a refractometer before blaming the measuring cell.

Quality, packaging and ordering 990672

BG 990672 is manufactured and tested to aftermarket replacement standards, with electrical, leakage and functional testing carried out before packing on the 24V specification. Bulk and retail packaging, private-label cartons and customer-specific labelling are available for distributors and workshop groups.

Send OE DZ109689 or the number printed on your part, the engine code and the vehicle identification number with your enquiry, and our technical team will confirm the correct reference, current stock position and lead time before you commit to an order.

Frequently asked questions

Does BG 990672 replace OE DZ109689?

Yes. BG 990672 is listed against DZ109689. Confirm the number printed on the removed part and any manufacturer supersession before ordering.

Which vehicles does BG 990672 fit?

Recorded coverage includes John Deere. It is supplied as a direct-fit aftermarket nox sensors on 24V systems. Adaptation, reset or relearn procedures required by the vehicle manufacturer still apply after installation.

Does this fault code always mean the nox sensors has failed?

No. Exhaust leaks, wiring and connector damage, reductant quality, dosing performance and upstream engine faults can all produce the same codes. Validate those inputs before replacing BG 990672.
