In brief
SCR can remove most engine-out nitrogen oxides when exhaust temperature, DEF quality, atomization, mixing, catalyst condition and sensor feedback are all correct. A fault in any one of these links can make a healthy catalyst appear defective.
Selective catalytic reduction is often described in one sentence: inject diesel exhaust fluid (DEF/AdBlue®) into hot exhaust, form ammonia, and use a catalyst to convert nitrogen oxides (NOx) into nitrogen and water. The chemistry is accurate — but incomplete for anyone who must diagnose, repair or source parts for a real vehicle.
In practice, SCR is a closed-loop mechatronic system. Its performance depends on the engine calibration, exhaust temperature, urea delivery hardware, spray quality, mixer geometry, catalyst formulation, ammonia storage and multiple sensors. Understanding those interactions is the difference between a lasting repair and an expensive cycle of repeated component replacement.
1. What a Diesel SCR System Removes — and Why Your Engine Needs It
A diesel engine operates with excess oxygen. Lean combustion supports fuel efficiency and low carbon monoxide emissions, but it also makes conventional three-way catalyst chemistry ineffective for NOx control. Engine measures such as exhaust gas recirculation can reduce NOx formation, yet modern limits and real-driving duty cycles typically require aftertreatment as well.
SCR solves the lean-exhaust problem by adding a selective reductant. Automotive systems carry a standardized aqueous urea solution — commonly 32.5% high-purity urea in demineralized water — rather than storing ammonia directly. The dosing system meters this fluid upstream of the catalyst.
Inside the hot exhaust stream, water evaporates and urea decomposes through thermolysis and hydrolysis. The resulting ammonia (NH₃) is temporarily stored on active catalyst sites and reacts selectively with NO and NO₂. The principal outcomes are nitrogen (N₂) and water vapour (H₂O). An ammonia slip catalyst (ASC), when fitted, oxidizes excess NH₃ that leaves the SCR brick.
Important
“Selective” does not mean the system is self-correcting. The ECU must estimate how much ammonia the catalyst can safely store and continuously balance NOx conversion against ammonia slip.
2. The five conditions required for high NOx conversion

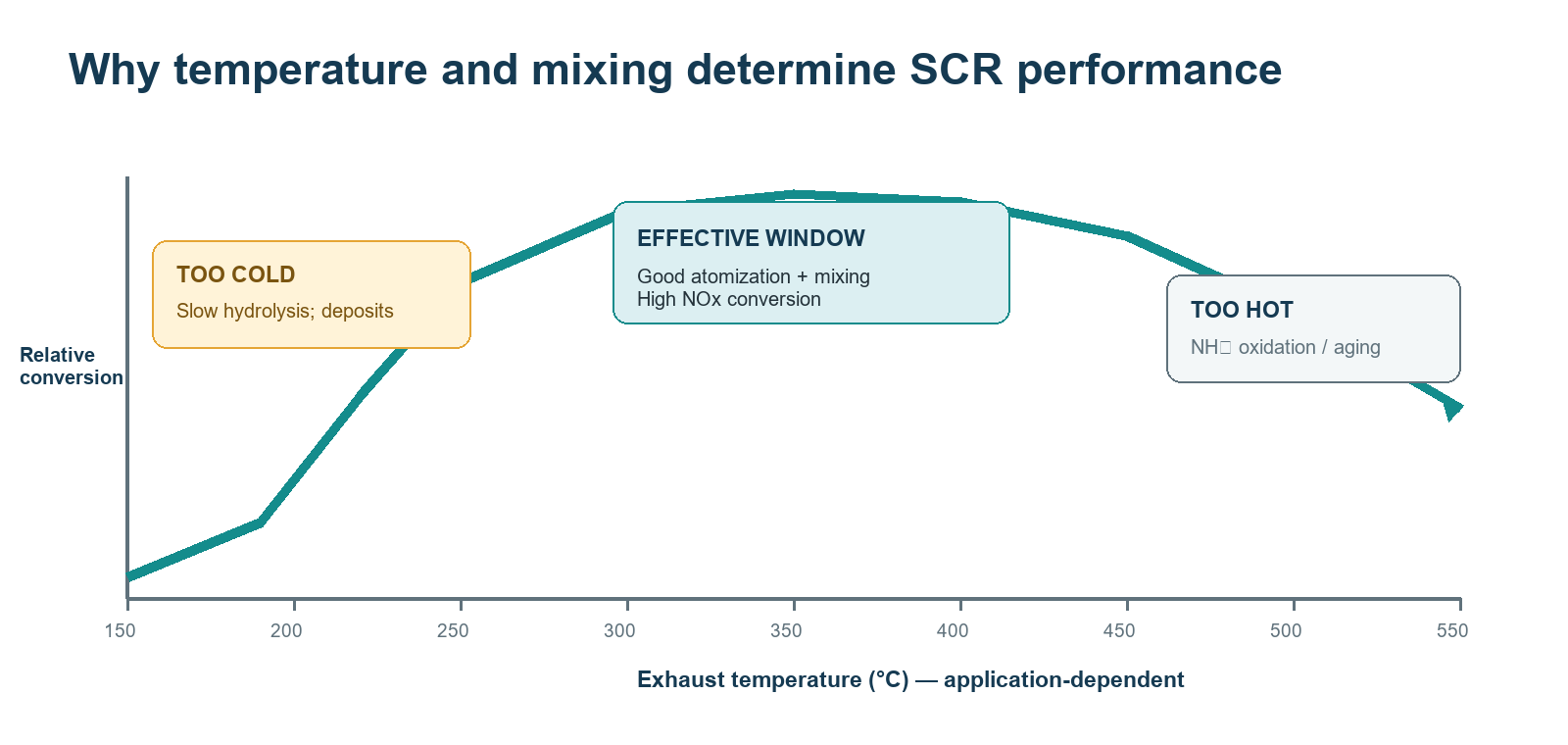

1) Enough temperature — but not simply “the hotter, the better”
At low temperature, water evaporation and urea hydrolysis are slow. Liquid can wet walls, form deposits and fail to produce usable ammonia. As the catalyst reaches its effective operating range, ammonia storage and reaction rates improve sharply. At very high temperature, ammonia can oxidize, storage capacity falls and long-term thermal aging accelerates. Exact thresholds vary with catalyst formulation, packaging and calibration; diagnostic decisions should therefore use the vehicle manufacturer’s data rather than a universal temperature number.
2) Correct DEF quality and delivery
Concentration, purity and contamination matter. Incorrect fluid, diluted DEF, mineral contamination or aged deposits can disturb dosing and damage downstream components. The pump or supply module must build stable pressure, the lines must heat and purge as designed, and the injector must deliver the commanded mass without leaking after shutoff.
3) Fine atomization and uniform mixing
The catalyst sees a three-dimensional exhaust flow, not a laboratory beaker. Droplet size, injector angle, wall impingement, mixer condition, exhaust flow and the distance available for decomposition all determine ammonia uniformity at the catalyst face. Poor mixing creates local zones of under-dosing and over-dosing at the same time: NOx breaks through one part of the brick while another part risks ammonia slip and deposits.
4) A healthy, correctly matched catalyst
Catalyst chemistry is selected for a temperature window, sulfur tolerance, durability target and application. Copper-zeolite, iron-zeolite and vanadium-based systems have different operating characteristics. An intact-looking can is not proof of catalytic activity.
5) Credible sensor feedback
Temperature and NOx signals drive the whole dosing strategy. A biased or aged sensor can suppress dosing, trigger inducement or mask real conversion loss — so signal plausibility must be proven before any conclusion points elsewhere.

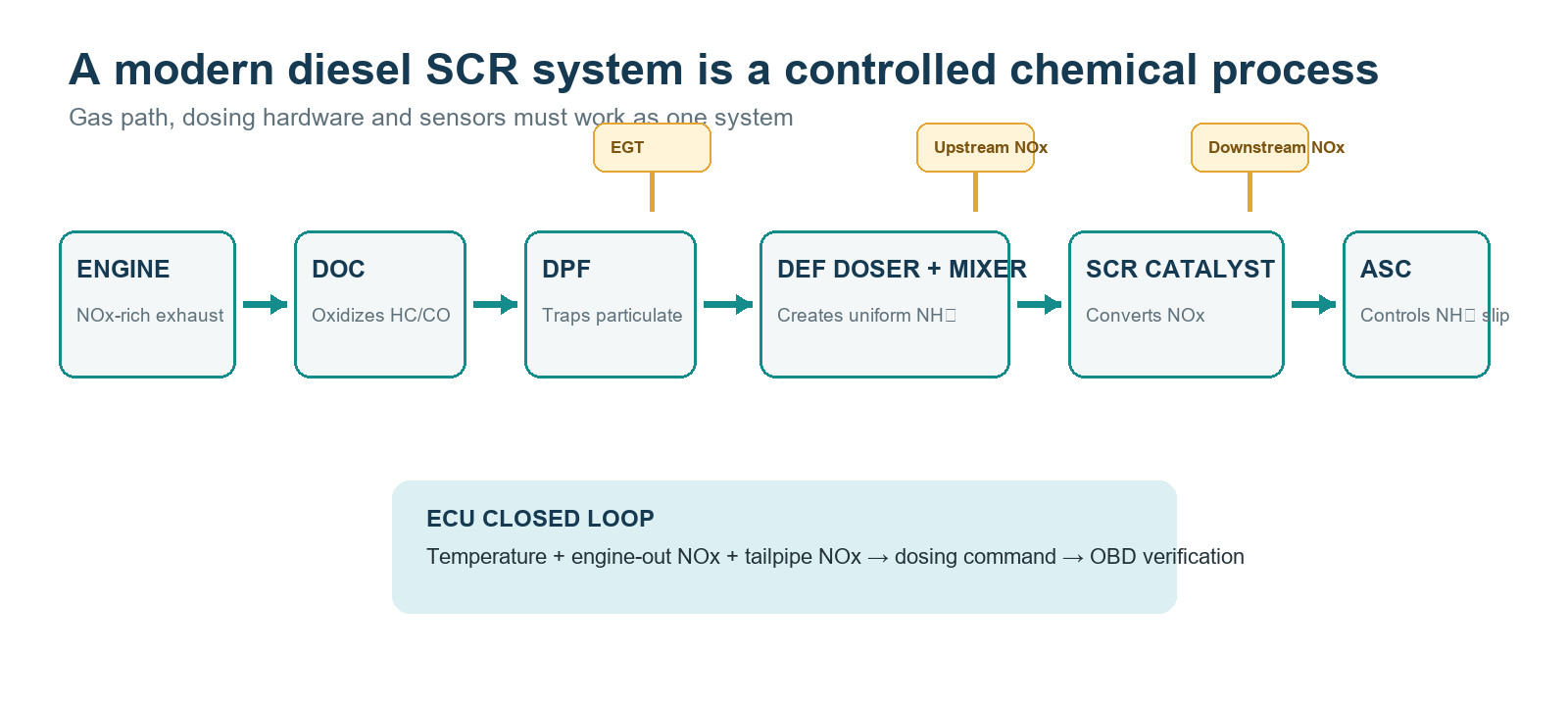

3. How the control loop decides how much DEF to inject
The ECU starts with a feed-forward estimate based on engine operating data: speed, load, fuel rate, air flow, EGR position and an engine-out NOx model. It then applies constraints for exhaust temperature, catalyst state, DEF pressure and expected ammonia storage. The injector command is corrected using measured NOx upstream and downstream of the SCR system and checked by on-board diagnostics (OBD).
This explains why a dosing problem may be intermittent. During light-load urban operation, the exhaust may remain too cold for normal dosing. During a loaded road test, temperature and mass flow rise, monitors become active and the fault finally appears. Freeze protection adds another layer: DEF freezes near −11 °C, so tanks, lines and modules use calibrated thawing, heating and purge strategies.
4. Common Diesel SCR System Failures: Symptoms, Mechanisms & Proof
| Observed problem | Likely mechanisms | Evidence to collect | Avoid this shortcut |
|---|---|---|---|
| Low conversion / inducement | No dosing, biased NOx signal, low temperature, poor mixing, aged catalyst | Commanded vs. actual pressure; injector quantity; EGT; upstream/downstream NOx under load | Replacing the SCR can before proving dose and sensor inputs |
| White deposits near injector | Cold dosing, wall impingement, leaking injector, poor purge or mixer damage | Deposit location; spray pattern; injector leak-down; temperature history | Cleaning deposits without correcting the cause |
| High downstream NOx | Under-dosing, inactive catalyst, exhaust leak, incorrect catalyst application | NOx correlation; leak check; DEF flow; catalyst part/vehicle match | Treating every efficiency code as a catalyst failure |
| High DEF consumption | Over-dosing, biased upstream NOx, leak, incorrect software/adaptation | Tank usage; pressure decay; NOx plausibility; ammonia-slip evidence | Assuming high DEF use means good conversion |
| Intermittent sensor codes | Harness heat damage, connector ingress, voltage/ground issue, sensor aging | Power, ground, CAN/wiring integrity; heat and vibration inspection | Replacing the sensor without inspecting its electrical environment |

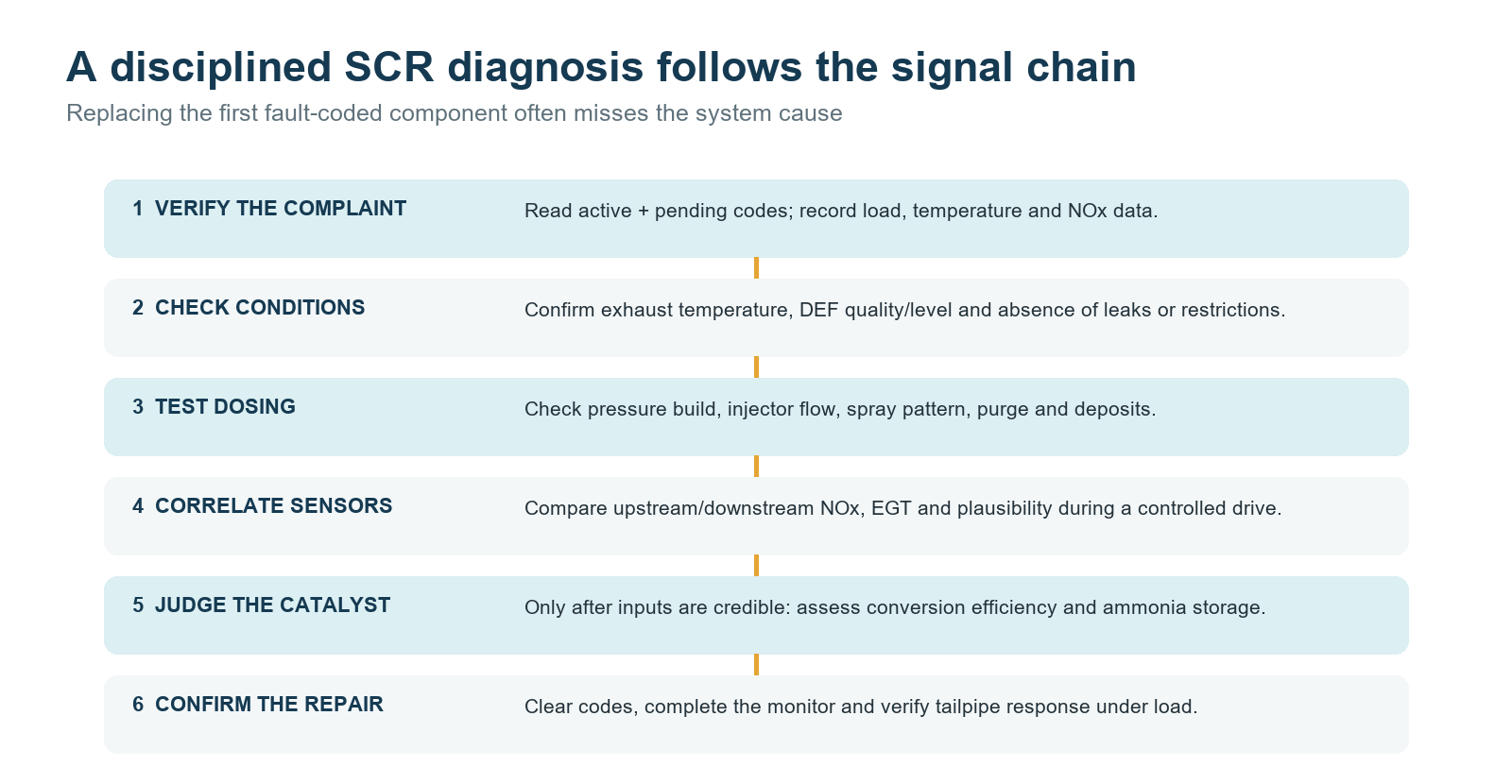

5. A practical diagnostic sequence
Start with the whole system. Record fault codes and freeze-frame data before clearing anything. Confirm the complaint under the conditions required to run the SCR monitor. Inspect for exhaust leaks, damaged wiring, crystallization and incorrect previous repairs. Verify DEF quality and the supply system, then test injector delivery and spray. Only after temperature and dosing are credible should upstream and downstream NOx readings be used to judge catalyst conversion.
6. Replacement-part selection: why reference matching is only the first step
Aftermarket SCR repairs often fail because a component is treated as a generic bolt-on part. A NOx sensor includes a sensing element, heater control, electronics, communication protocol and application-specific calibration. A DEF injector is defined not only by its connector and mounting pattern, but also by flow rate, opening behaviour, spray geometry, thermal exposure and sealing. EGT sensors differ in response, resistance curve, construction and installation depth.
For professional sourcing, verify:
- OE and supersession references, vehicle/engine/aftertreatment application, emission stage and installation position.
- Electrical connector, harness routing, communication and calibration compatibility — not appearance alone.
- Operating range, materials, sealing and resistance to exhaust heat, vibration, water, DEF and road contaminants.
- Bench and end-of-line evidence appropriate to the component: electrical checks, leak/pressure checks, calibrated flow or spray evaluation, and traceability.
- Installation instructions, connector condition, updated software/adaptations and confirmation that the root cause has been corrected.
BG approaches diesel aftertreatment as an interconnected product family rather than isolated SKUs. Its aftermarket scope includes NOx, EGT and particulate sensors, DEF dosing modules/injectors, urea pumps and related diesel system components for passenger vehicles, commercial vehicles and off-road equipment. With more than 15 years of industry experience, specialized manufacturing resources, R&D support and a broad reference catalog, BG’s practical value is application matching plus technical support across the repair chain — not merely supplying a part that looks similar.
7. Frequently asked questions
- What is the difference between SCR, DPF and DOC?
- DOC oxidizes hydrocarbons and carbon monoxide, DPF captures particulate matter, and SCR reduces nitrogen oxides. They are complementary parts of one aftertreatment system.
- Can an SCR system work without a NOx sensor?
- The catalyst chemistry can still react, but modern vehicle control and OBD depend on credible sensor feedback. A failed or biased sensor can disable dosing, trigger inducement or hide poor conversion.
- Why does DEF crystallize around the injector?
- Visible deposits commonly indicate low-temperature wall wetting, poor atomization or mixing, leakage after shutdown, purge problems or repeated short-duty operation. Cleaning is not a complete repair until the mechanism is corrected.
- Does an SCR efficiency code always mean the catalyst is bad?
- No. The ECU infers efficiency from temperatures, dosing and NOx signals. Exhaust leaks, weak dosing, biased sensors and incorrect operating conditions must be ruled out first.
- Can the downstream NOx sensor read some NOx even when SCR works?
- Yes. Conversion is not always 100%, especially during cold start and rapid transients. Diagnosis should evaluate the response under a defined, warmed, loaded condition and compare it with the manufacturer's strategy.
- What should be checked after replacing an SCR component?
- Correct installation and connector routing, leaks, adaptations or software procedures, dosing operation and completion of a monitored road test with live upstream/downstream NOx and temperature data.
Need Diesel SCR System Parts?
BG manufactures NOx sensors, DEF dosing modules, urea pumps and EGT sensors for passenger vehicles, commercial vehicles and off-road equipment.
8. The system view is the durable repair
SCR is successful when chemistry, heat, fluid delivery, mixing, catalysts, electronics and diagnostics agree. That same system view should guide every repair. Measure before replacing, match parts by application rather than appearance, and verify the result under real operating conditions. This approach protects emissions compliance, avoids repeat labour and preserves the efficiency advantage that made lean-burn diesel valuable in the first place.
