A modern diesel aftertreatment system is not a collection of independent parts. It is a controlled emissions process in which exhaust chemistry, temperature, gas flow, DEF delivery, catalysts, filters, sensors and software must agree. Understanding that chain is essential when selecting replacement parts, diagnosing repeat faults or maintaining a fleet.
This guide explains the complete diesel exhaust gas treatment path—from engine-out emissions to the tailpipe—and shows why a system-level diagnosis is more reliable than replacing the component named in a fault code.
In brief: the DOC oxidizes carbon monoxide and hydrocarbons and helps manage exhaust chemistry; the DPF traps particulate matter; the DEF dosing system supplies urea solution; the SCR catalyst uses ammonia to reduce NOx; an ASC may control ammonia slip; and sensors allow the control unit to monitor the process. System layout varies by engine, emissions stage and manufacturer.
What is a diesel aftertreatment system?
A diesel aftertreatment system—also called a diesel exhaust aftertreatment system or diesel exhaust gas treatment system—is the group of components installed in the exhaust stream to reduce regulated pollutants after combustion. Depending on the application, it can include a diesel oxidation catalyst (DOC), diesel particulate filter (DPF), DEF/AdBlue supply and dosing equipment, decomposition and mixing hardware, selective catalytic reduction (SCR) catalyst, ammonia slip catalyst (ASC), and multiple exhaust sensors.
Diesel engines normally operate with excess oxygen. That supports efficient lean combustion, but it also means the exhaust cannot be treated in the same way as stoichiometric gasoline exhaust. Diesel systems therefore use several complementary processes: oxidation for carbon monoxide and hydrocarbons, filtration and regeneration for particulate matter, and urea-SCR chemistry for nitrogen oxides.

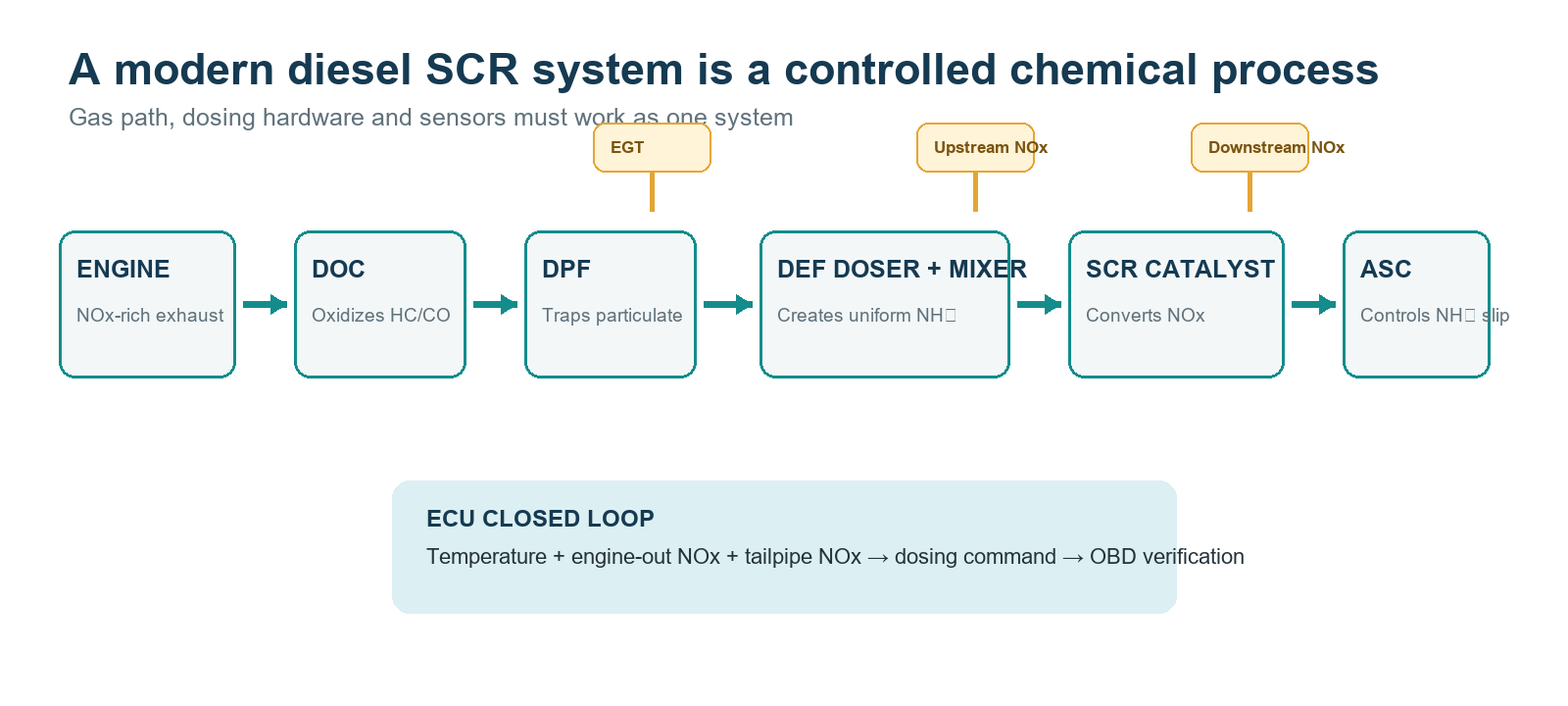

The complete exhaust treatment path
Engine-out exhaust: combustion produces a mixture that can contain NOx, particulate matter, carbon monoxide, unburned hydrocarbons, carbon dioxide, water vapor and excess oxygen. The proportions change continuously with load, temperature, air handling, EGR and fuel injection.
DOC: the oxidation catalyst promotes reactions that convert much of the carbon monoxide and unburned hydrocarbons to carbon dioxide and water. It can also influence the NO-to-NO₂ balance and provide heat for downstream operation.
DPF: the wall-flow filter captures soot and other particulate material. Soot must be oxidized through regeneration; non-combustible ash remains and requires separate service management.
DEF dosing and mixing: the supply system meters diesel exhaust fluid into hot exhaust. Water evaporates and urea decomposes to form ammonia, while the mixer aims to distribute it uniformly across the catalyst face.
SCR: stored ammonia reacts selectively with NOx on the catalyst, producing mainly nitrogen and water when the required operating conditions are present.
ASC and tailpipe monitoring: where fitted, an ammonia slip catalyst treats excess ammonia. Downstream NOx or particulate sensors support on-board monitoring of system performance.
What each major component actually does
Component | Primary function | What commonly affects it |
|---|---|---|
DOC | Oxidizes CO and hydrocarbons; supports downstream heat and exhaust chemistry | Low temperature, sulfur exposure, oil/fuel contamination, thermal aging |
DPF | Traps particulate matter in a porous wall-flow substrate | Soot loading, ash accumulation, failed regeneration, oil consumption, physical damage |
DEF tank and supply module | Stores, heats where required, filters and pressurizes DEF | Contaminated fluid, leaks, freezing/thaw faults, blocked filter, pressure or purge faults |
DEF injector | Meters and atomizes DEF into the exhaust stream | Crystallization, leakage, restricted nozzle, poor spray pattern, heat damage |
Mixer/decomposition section | Promotes evaporation, urea decomposition and ammonia distribution | Low temperature, wall wetting, deposits, damaged mixer or poor flow distribution |
SCR catalyst | Stores ammonia and reduces NOx | Incorrect dose, poor mixing, low temperature, poisoning, thermal aging |
ASC | Controls ammonia that exits the SCR catalyst | Excess dosing, aging and unsuitable temperature conditions |
DOC: the first catalytic stage
The diesel oxidation catalyst is often the first aftertreatment brick after the turbocharger. Its job is broader than “burning pollution.” It oxidizes carbon monoxide and gaseous hydrocarbons and can oxidize part of the nitric oxide to nitrogen dioxide. That NO₂ fraction can assist passive soot oxidation and affect downstream SCR reaction pathways.
DOC performance depends on temperature and catalyst condition. A low-temperature duty cycle can limit conversion, while excessive unburned fuel, lubricant-derived material, sulfur exposure or high thermal stress can degrade performance. During active DPF regeneration, some systems use controlled hydrocarbon oxidation across the DOC to generate downstream heat. A dosing or combustion fault during that process can create an unsafe temperature rise, so the complete temperature signal chain matters.

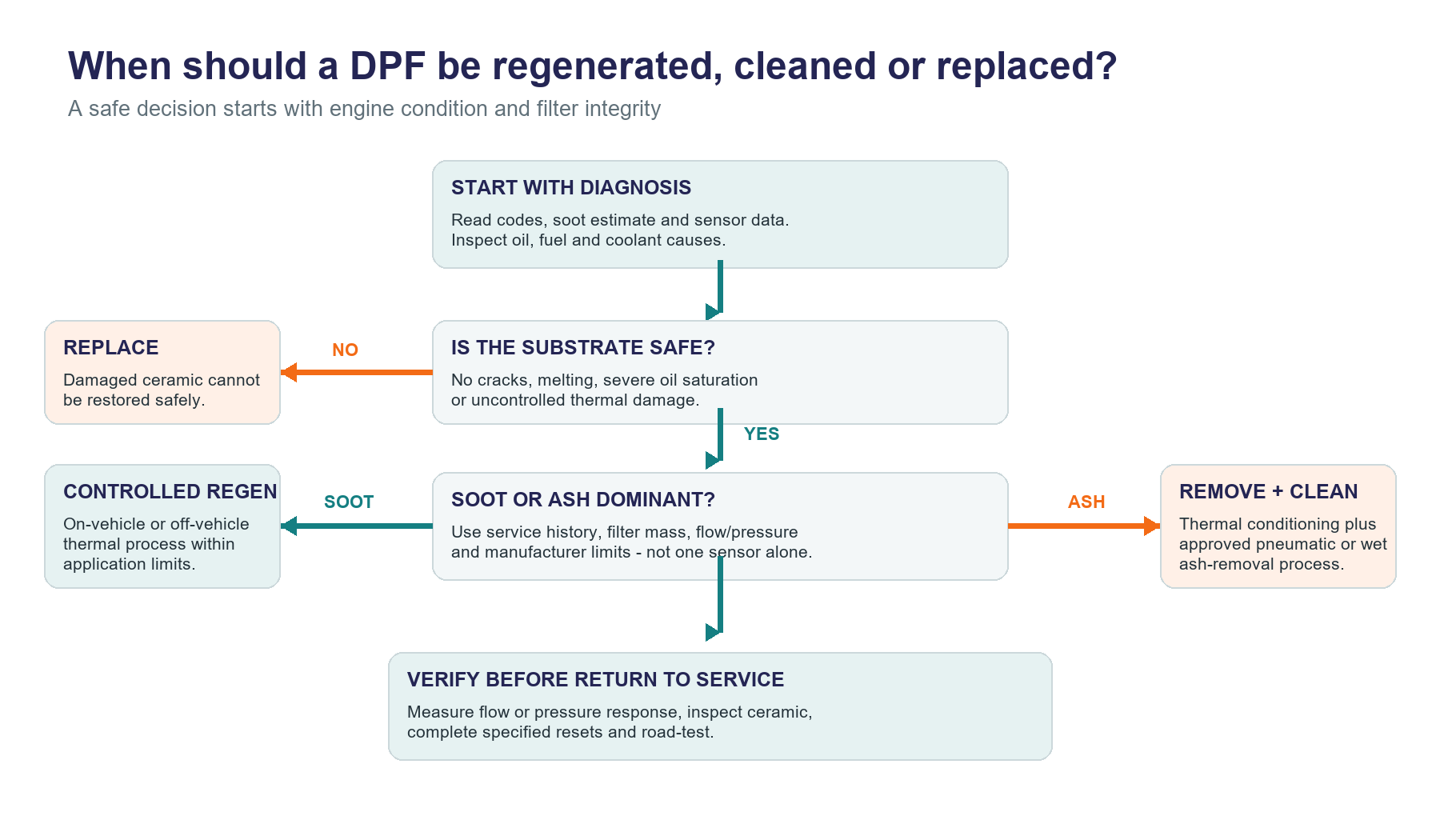

DPF: filtration is different from regeneration
The DPF captures particulate matter as exhaust passes through porous channel walls. Carbon-rich soot gradually increases restriction. The control system estimates loading from models and operating data and may use differential pressure and exhaust temperature signals to supervise the filter.
Regeneration oxidizes soot; it does not remove ash. Passive regeneration uses suitable temperature and exhaust chemistry available during operation. Active regeneration raises temperature through an application-specific engine or aftertreatment strategy. A service or forced regeneration is a diagnostic procedure performed only when the manufacturer’s enable and safety criteria are met.
Ash originates mainly from non-combustible lubricant additives, wear material and other inorganic sources. It remains after soot oxidation. When ash loading becomes excessive, the removed filter may require an approved off-vehicle cleaning process. A cracked, melted, oil-saturated or otherwise damaged substrate may require replacement rather than another regeneration attempt.
For a more detailed explanation, see Diesel DPF Regeneration: How It Works, Why It Fails and When Off-Vehicle Service Is Needed.
DEF dosing: fluid quality, pressure and spray all matter
Automotive DEF is a standardized aqueous urea solution made with high-purity urea and demineralized water. It is carried on the vehicle so the system can generate ammonia in the exhaust rather than store ammonia directly. The tank, heater, filter, supply module, lines and injector form one controlled circuit.
When conditions permit dosing, the supply module builds pressure and the injector meters fluid according to the control strategy. Good dosing is not defined only by total quantity. The spray must atomize and distribute correctly, the exhaust must provide enough heat for evaporation and decomposition, and the system must avoid persistent wall wetting. Incorrect fluid, contamination, pressure instability, injector leakage or restricted spray holes can create deposits and reduce available ammonia.
White deposits near the injector do not automatically prove that the injector is defective. Low exhaust temperature, an exhaust leak, poor mixer flow, incorrect installation, failed purge or excessive commanded dosing can produce similar evidence. Bench testing should evaluate electrical behavior, pressure response, leakage, delivered quantity and spray pattern according to the component and application.
SCR: converting NOx under lean exhaust conditions
Inside the SCR catalyst, ammonia is stored on active sites and reacts with nitric oxide and nitrogen dioxide. Effective conversion requires a suitable temperature window, correct ammonia availability, uniform mixing, adequate catalyst activity and credible sensor feedback. Exact operating thresholds vary with catalyst formulation, packaging and calibration; a single universal temperature should not be used as a pass/fail specification.
At low exhaust temperature, water evaporation and urea decomposition slow down, increasing deposit risk and limiting usable ammonia. At high temperature, ammonia storage changes and long-term thermal aging can accelerate. The control unit therefore limits or adjusts dosing according to temperature, mass flow, modeled catalyst state and measured NOx.
An SCR efficiency code does not prove that the SCR catalyst has failed. Exhaust leaks, low temperature, weak DEF pressure, poor injector flow, incorrect DEF, biased NOx sensors, wiring faults and engine-out NOx problems must be excluded first. See the detailed Selective Catalytic Reduction guide and SCR system fault diagnosis.
The sensors that make closed-loop control possible
Sensor | What it tells the controller | Important diagnostic caution |
|---|---|---|
NOx sensor | Engine-out or post-SCR NOx behavior, depending on installation position | A biased signal can imitate poor dosing or catalyst conversion; confirm power, ground, communication and plausibility. |
EGT sensor | Temperature at selected points across the aftertreatment system | Compare sensors from cold start and under load; one plausible-looking but biased signal can distort regeneration or dosing. |
Differential pressure sensor | Pressure difference across the DPF or another monitored section | Blocked, split or reversed pressure lines can create false restriction readings. |
PM sensor | Downstream particulate behavior used for DPF monitoring | Check wiring, contamination, exhaust leaks and the relevant monitor conditions before condemning the DPF. |
DEF quality/level/temperature/pressure inputs | Whether the reductant system can dose correctly | Interpret values together; one failed condition can disable dosing and generate secondary SCR faults. |
NOx, EGT, PM and pressure sensors are application-specific. Connector appearance alone does not confirm compatibility. OE and supersession number, voltage, installation position, communication protocol, cable length, probe design, thread, calibration and emissions application all need to match.
Why one fault can produce several misleading codes
Aftertreatment diagnostics are based on relationships. The controller compares modeled engine-out emissions with temperature, pressure, dosing commands and downstream response. If a DEF injector under-delivers, downstream NOx can remain high and trigger an efficiency code. If an upstream NOx sensor reads high, the controller may command extra reductant and create deposits or ammonia slip. If an EGT sensor reads low, regeneration or dosing may be inhibited even though the exhaust is physically hot enough.
This is why indiscriminate parts replacement performs poorly. The component named in a code may be the failed part, the monitor that detected another failure, or the victim of an upstream condition.

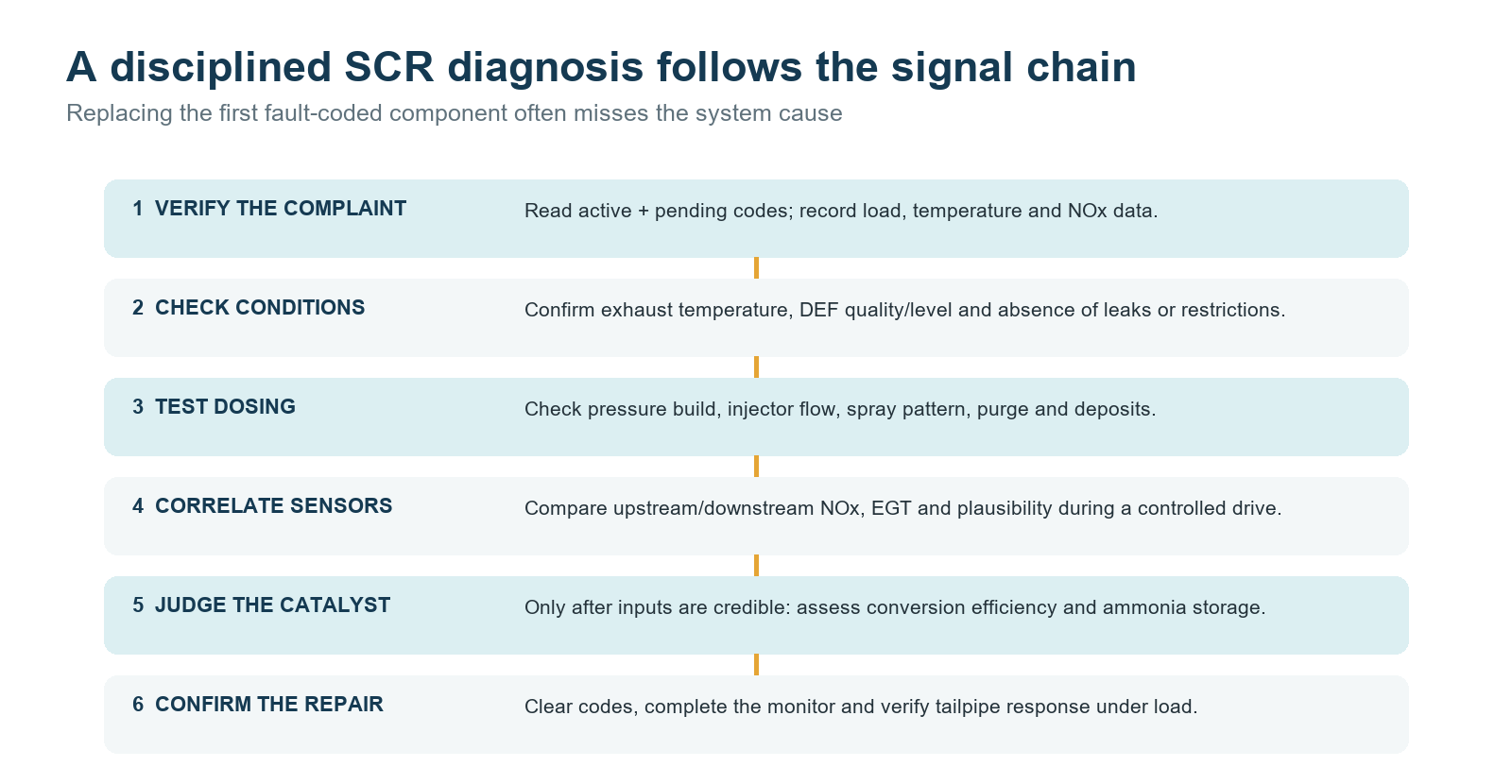

A professional diesel aftertreatment diagnostic workflow
Preserve evidence. Record active, pending and history codes, freeze-frame data, inducement status and recent repair history before clearing anything.
Confirm the complaint. Determine the operating conditions under which the warning, derate, failed regeneration or abnormal reading occurs.
Inspect the system. Check exhaust leaks, wiring, connectors, pressure tubes, fluid contamination, crystallization, heat damage, clamps and incorrect previous installation.
Validate operating conditions. Confirm relevant temperatures, engine load, exhaust flow, fuel and oil condition, DEF level and quality, and monitor-enable criteria.
Test the affected subsystem. Measure DPF restriction and sensor response, DEF pressure and dosing, or NOx/EGT plausibility as appropriate.
Judge catalysts only after inputs are credible. A conversion calculation is meaningful only when dosing, exhaust integrity, temperature and sensors are trustworthy.
Verify the repair. Complete required resets or adaptations, run the specified monitor and confirm the system under controlled load.
Common symptoms and what they do—and do not—prove
Symptom | Possible causes | Do not assume |
|---|---|---|
Frequent or incomplete regeneration | Low-temperature duty, excessive soot production, biased EGT/pressure data, ash loading, engine fault | That the DPF alone is defective |
High differential pressure | Soot, ash, damaged substrate, blocked pressure line or incorrect signal | That forced regeneration will remove every restriction |
White deposits near DEF injector | Low temperature, wall wetting, poor spray, leakage, weak mixing or purge fault | That crystallization has only one cause |
SCR efficiency or inducement warning | Dosing, DEF quality, exhaust leak, NOx signal, temperature, engine-out NOx or aged catalyst | That the SCR catalyst must be replaced first |
Fault returns after a new sensor | Wrong application, wiring, power/ground, exhaust leak, unresolved system fault or required service routine | That every new component is automatically compatible |
Maintenance principles that prevent repeat failures
Use fuel, lubricant and DEF that meet the engine and vehicle manufacturer’s requirements.
Keep DEF handling equipment clean and dedicated; fluid contamination can damage the complete dosing system.
Repair engine oil consumption, injector, turbocharger, EGR and air-handling faults before they overload downstream components.
Do not ignore exhaust leaks, damaged heat shields, loose clamps or incorrectly routed sensor cables.
Follow the manufacturer’s DPF ash-service interval and acceptance limits rather than relying on repeated forced regeneration.
Record codes and live data before replacing parts and confirm the repair through the required monitor or road test.
How BG supports the diesel aftertreatment repair chain
BG’s work in diesel aftertreatment covers application-matched replacement components and service equipment rather than a single isolated product category. The supplied BG materials cover NOx, EGT and particulate sensors; DEF/AdBlue pumps, dosing modules and injectors; DPF and catalyst-related parts; and equipment for AdBlue pump testing, NOx sensor testing and controlled off-vehicle DPF regeneration.
The practical value of this range is system context. A replacement NOx sensor must match its electrical and application requirements. A DEF injector must deliver the correct quantity and spray pattern. A regeneration machine must apply a controlled process appropriate to the substrate, and regeneration must not be confused with ash removal. For workshops, distributors and fleets, correct identification and verification are as important as the replacement part itself.
BG application checklist: provide the OE number and all suffixes, VIN or engine/equipment model, emissions stage, installation position, diagnostic codes, original label and connector photographs, and relevant live data. For service equipment, also provide local voltage/frequency, component dimensions, expected throughput and the intended cleaning or test workflow.
Frequently asked questions
What is the difference between a diesel exhaust system and an aftertreatment system?
The exhaust system carries exhaust gas away from the engine and can include pipes, silencers and thermal components. The aftertreatment system is the emissions-control section that uses catalysts, filtration, reductant dosing and sensors to reduce regulated pollutants. In modern vehicles the two are physically integrated, but the terms are not identical.
Are DOC, DPF and SCR always installed in the same order?
No. DOC–DPF–SCR is a common arrangement, but close-coupled catalysts, SCR-coated filters, dual-dose SCR systems and other layouts are also used. Always identify the actual application before diagnosing or ordering parts.
Does DPF regeneration remove ash?
No. Regeneration oxidizes combustible soot. Non-combustible ash remains in the filter and must be managed through an approved cleaning or replacement procedure.
Does an SCR efficiency code mean the catalyst is bad?
Not necessarily. The result depends on exhaust temperature, DEF quality and quantity, injector spray, mixing, exhaust leaks, NOx sensor accuracy, engine-out NOx and catalyst condition. Those inputs must be tested before condemning the catalyst.
Can a NOx sensor be selected by connector shape alone?
No. Match the OE reference and supersession, voltage, position, communication protocol, calibration, cable length, thread and physical configuration. Similar-looking sensors can be electrically or functionally different.
Why does an aftertreatment fault return after replacing a part?
Common reasons include an unresolved upstream engine problem, incorrect application, damaged wiring, exhaust leakage, contamination, missing reset/adaptation, or replacing the monitored component instead of the true cause.
A system view produces better repairs
Diesel exhaust gas treatment succeeds when heat, flow, chemistry, filtration, dosing, sensors and control software work together. The most reliable repair strategy follows that same chain: preserve the evidence, verify operating conditions, test the subsystem, match the replacement by application and prove the result under the required monitor conditions.
For component identification or workshop-equipment support, send BG the complete application information and diagnostic evidence. This helps reduce cross-reference ambiguity, avoid unnecessary parts replacement and build a repair around the actual condition of the system.
Technical basis: BG-supplied materials covering diesel aftertreatment, SCR, DEF dosing, exhaust sensors and DPF service equipment; cross-checked against public technical information from Cummins, Bosch and the U.S. EPA. Exact thresholds, torque values, test limits and service procedures remain application-specific; the vehicle or equipment manufacturer’s service information is the final authority. AdBlue® is a registered trademark of the VDA.
